Features
Memory
Satellite integrity check

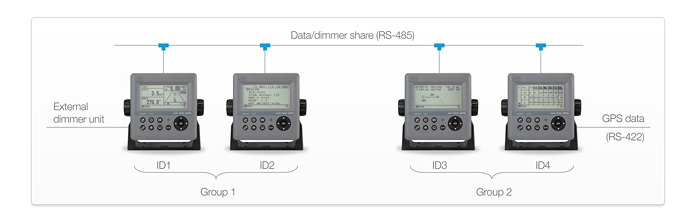

Flexible data and dimmer share
Uniform operation
Clear view
Power distribution
Long LCD life
Also, one of the new features is DC power distribution. When powering one of the displays, this daisy chain concept distributes power to two additional units, which allow for an easy, flexible and economical installation approach.
Dual color LED backlight
Proven sensor
The sensor, also used with the JLR-7500 series has been well proven in the market. The base of the sensor is designed for easy installation, either on a pole or on a extension mast. The base also include a slot allowing for easy cable management, significantly reducing installation time.
No flush mount kit
With JRC's new design approach, a flush mount kit is not required and screws are nicely concealed behind the front cover.
Interfacing
Interfacing is made easy and cost-effective. The display is equipped with three serial ports, each able to send or receive data. Simply connect the GPS sensor to the display and a cost-effective MED approved solution is born. In case extensive interfacing required, an optional junction box to enable external dimming, buzzer, connect a printer and naturally connnect to radar, ecdis, doppler current meter but also to JRC's Remote Maintenance System.
